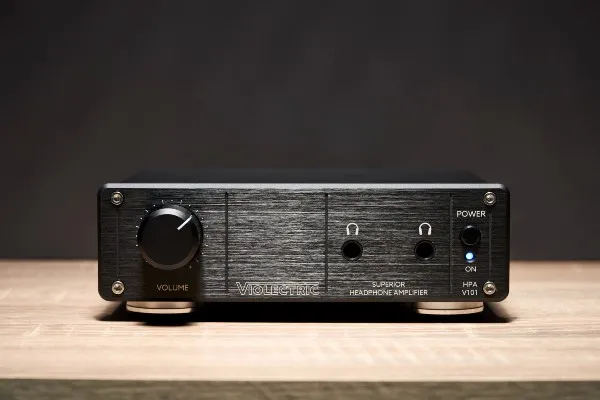

The HPA V101 is a new headphone amp in the Violectric program to complete the range with an entry amp. It is based on the successful Lake People / Violectric amp technology and offers with its special transistorised circuitry a very neutral sound with a touch of warmth.While professionals praise the indestructible mechanical and electronic quality, private users love the exceptional sound quality.
HPA V101 includes all construction details important:
- transistorised amplifiers for unmatched transmission quality
- smooth performing RK 27 Potentiometer for volume control
- oversized power supply with toroidal transformer
The advantages of the Violectric V101
- LOW NOISE because of low internal gain. Therefore, the self-generated noise from the amp is inaudible.
- HIGH OUTPUT VOLTAGE through 50 Volt internal operating voltage. Over 90 % of all headphone amplifiers in the market offer not half that voltage !! Therefore, best suited for high impedance headphones.
- HIGH OUTPUT POWER because of powerful amplifiers able to deliver much more current a headphone needs. Therefore best suited for low impedance headphones and even Planar cans !!
- HIGH DAMPING FACTOR through lowest output impedance. Therefore, best suited for full control even over critical headphones with the guarantee to have flattest possible response.
Technical Data
All Data RMS unwtd., 20 Hz - 20 kHz, Pre-Gain set to 0 dB
Input parameter

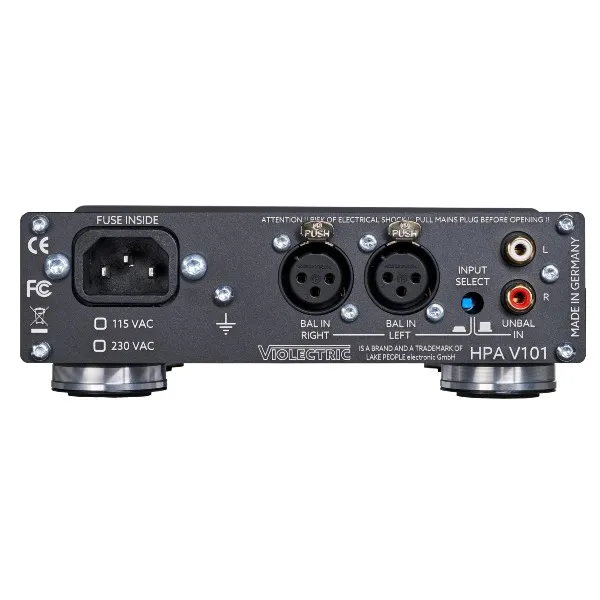

Inputs (stereo): 1 x XLR balanced, 1 x RCA, unbalanced Max. input level: + 21 dBu,Input impedance: 10 kOhm
Headphone amp parameter
Nominal input sensitivity: +6 dBuAmplifier gain: +6 dBPRE-GAIN: -18 / -12 / -6 / 0 / +6 / +12 / +18 dBr Frequency range: 5 Hz ... 250 kHz (- 0,5 dB)Output impedance: 0,125 OhmDamping factor (Load 50 Ohm): 400Dynamic range: > 129 dB (A-wtd)Noise: < -101 dBu (A-wtd)THD+N (1kHz/2x10V/100R = 1W): < -100 dB / < 0,001 % THD+N (1kHz/2x4V/32R = 0,5W): < -102 dB / < 0.0008 % Crosstalk: -110 dB (1 kHz) / -95 dB (15 kHz)Headphone outputs: 2 x1/4“ (6,3 mm) TRS jack, unbal.
General
Supply voltage: 230 V AC / 115 V AC max. 10 VA
Front, Back, case: Aluminium, black anodised
Case dimensions: 170 x 49 x 165 mm (B x H x T)
Overall dimensions: 170 x 57 x 197 mm (B x H x T)
