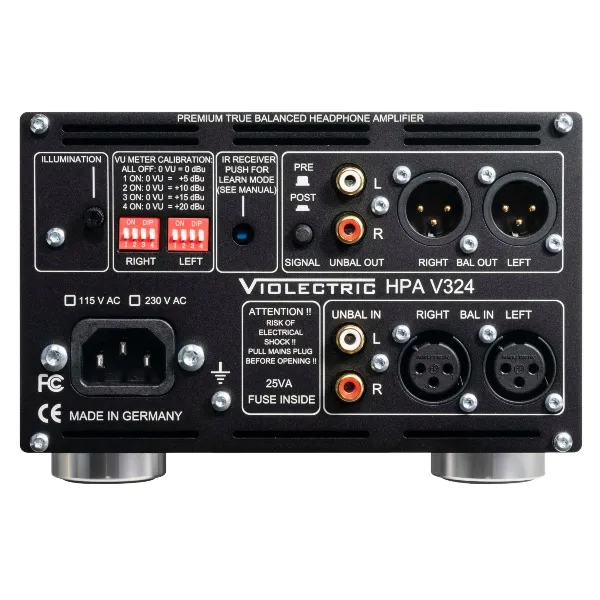

The V324 is a remote controllable headphone amplifier + preamplifier of top class with the possibility of both balanced and unbalanced headphone operation. The incredibly flexible of the HPA V324 features three headphone outputs (1x XLR 4-pin, balanced; 1x Pentaconn balanced, 1x 6.3mm stereo jack, unbalanced), balanced and unbalanced inputs and outputs. The outputs can be switched pre or post fader, i.e. they may provide a fixed signal (RecOut) or a signal which is influenced by the volume control (VarOut). The high output power of the four output stages combined with an extremely high attenuation factor make the unit an ideal partner even for the most difficult headphones. By using excellent components superior playback quality is achieved in all signal paths.

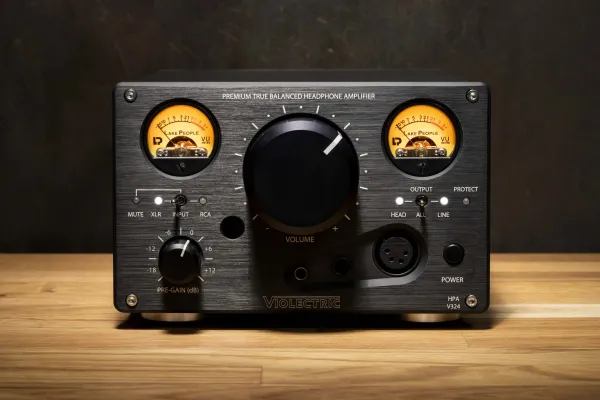

The Front panel is 8mm solid aluminium, laser engraved, with 2 illuminated VU meters for level display of input signals. Lighting intensity and sensitivity is adjustable on the back. The Volume control via motor-driven RK27 potentiometer can be use with the Remote Control that is included.
Output Power:
740mW into 600ohm
1450mW into 300ohm
4150mW into 100ohm
5000mW into 50ohm
4400mW into 32ohm
2.500mW into 16ohm
Output Impedance: 0.15ohm (balanced); 0.3ohm (unbalanced)
Frequency response: 5Hz - 250kHz (-0.5dB)| - 18 … +12 dB pre-gain setting on the front for optimal adjustment to source and headphones
Connections
Inputs: 1x balanced, XLR; 1x unbalanced RCA
Outputs: 1x balanced, XLR; 1x unbalanced, RCA|
Gain
Adjustable gain (Pre-Gain): -18/-12/-6/0/+6/+12dB
Headphone Outputs: 1x XLR 4-pin, 1x Pentaconn, 1x 6,3mm stereo jack
Dimensions (W x H x D): 170 x 113 x 250mm
