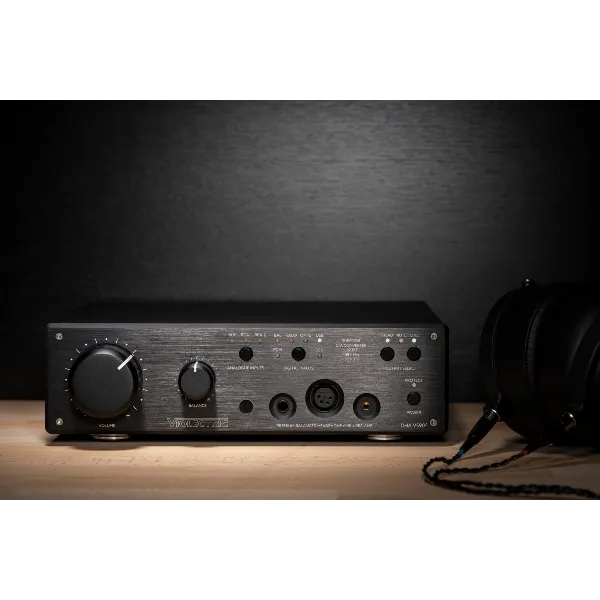

The Violectric DHA V590 is one of the top device in the Violectric range. It has a state-of-the-art D/A converter and a similar headphone amplifier.
The D/A converter is a ESS-Tech ES9026 PRO converter. This 32-bit converter includes 4 parallel D/A converters per channel and offers a dynamic range of 124 dB with a THD+N of -110 dB. The latest findings of the multiple test winners from Violectric and Niimbus have been implemented in the headphone amplifier.
Most functions can be conveniently controlled via a remote control.
With its incomparable technology, the Violectric DHA V590 not only offers one of the most powerful headphone amplifiers on the market, but also:
Lowest noise - due to a very small internal gain. As a result, the inherent noise of the amplifiers is inaudible.
High output voltage - due to 50 volt internal operating voltage. Therefore ideally suited for high-impedance headphones.
High output power - through powerful amplifiers that can deliver far more power than even the most demanding headphone can need. Therefore ideally suited for headphones with low impedances and also Planar.
High damping factor - due to the lowest output impedance. Therefore ideally suited to control even the most difficult headphones without influencing them with a guarantee for an uncompromising frequency response.
You have the choice:
headphone amplifier? preamp? D/A converter? Combination? Everything goes!The headphone outputs or the rear line outputs can be activated/deactivated using a switch on the front.
Connect not only your headphones to the Violectric DHA V590 , but also your power amplifier or your active loudspeakers and enjoy a compact and fantastic-sounding headphone amplifier and a premium preamp.
Remote controlControl the Violectric DHA V590 from a distance with its elegant remote control milled from solid. Infrared gives you access to the motorised volume control, mute, input selection, resampling settings, headphone and line-out control.
Features
Headphone outputs: 1 x 4-pin XLR, balanced / 1 x Pentaconn, bal. / 1 x ¼” jack, unbalanced
+/- 18 dB pre-gain for optimal matching of the HPA V550 to source and headphones
3 analog stereo inputs: 2 x unbalanced via RCA, 1 x balanced via XLR
4 powerful amplifiers, 6400 mW Pmax at 50 ohms, 21 V RMS at 600 ohms
Adjustment of the line-out signal to the following devices in the range +/- 18 dB
Adaptation of the line-out signal to other devices in the range +/- 18 dB
Monitoring of the headphone outputs for DC voltage and overload
Line outputs, stereo: 1 x balanced via XLR and 1 x unbalanced. via RCA
Headphone path and line-out path can be switched separately
Motorised volume control
Balance control
2 toroidal transformers, > 35.000 uF filter capacity
Dimensions (W x H x D): 29 x 8 x 25 cm
Weight: approx. 6 kg
Features
Headphone outputs: 1 x 4-pin XLR, balanced / 1 x Pentaconn, bal. / 1 x ¼” jack, unbalanced
+/- 18 dB pre-gain for optimal matching of the HPA V550 to source and headphones
3 analog stereo inputs: 2 x unbalanced via RCA, 1 x balanced via XLR
4 powerful amplifiers, 6400 mW Pmax at 50 ohms, 21 V RMS at 600 ohms
Adjustment of the line-out signal to the following devices in the range +/- 18 dB
Adaptation of the line-out signal to other devices in the range +/- 18 dB
Monitoring of the headphone outputs for DC voltage and overload
Line outputs, stereo: 1 x balanced via XLR and 1 x unbalanced. via RCA
Headphone path and line-out path can be switched separately
Motorised volume control
Balance control
2 toroidal transformers, > 35.000 uF filter capacity
Dimensions (W x H x D): 29 x 8 x 25 cm
Weight: approx. 6 kg
