MS C19 (Square) IEC Plug

Add Your Review

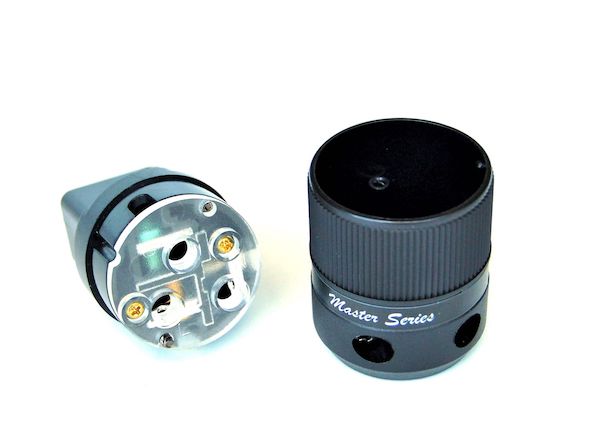

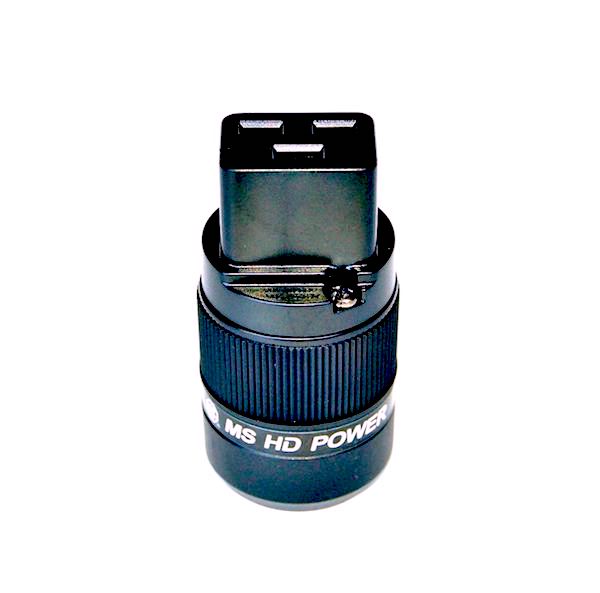

MS HD Power C19 (Square) IEC Plug for Power Cables

MS HD Power C19 (Square) 16 amp IEC Plug

Available in 2 different platings Gold, Rhodium and all with every contact surface plated in the chosen finish.

Securing up to 16mm diameter cables and up to 4mm power and earth conductors internally.

This C19 Plug has been designed to be used with audio equipment power cables for the best power transmission with no compromises. All the electrical parts (polished pins and all internal parts) are made from premium quality copper with Gold, Rhodium Plating.

The design allows for easy cable fitting (instructions provided) and the ease of cable fitting cannot be under estimated, some other brands are difficult to wire up with thicker cables.

The heavy duty mains wire-clamps design ensure an tight connection to ensure perfect power transmission and also protect the power cable wires from damage over time – inferior plugs secure the cables by the grub screws twisting down onto the cable directly and can be prone to material ‘creep’ over time, causing damage.

£60

Select Variation:
No more in stock

Specifications

FEATURES

Complied with CE and DIN IDE0620-1 safely standards.

1.0µm rhodium plating on all plug pins and wire clamps on rhodium version

3.0µm gold plating on all plug pins and wire clamps on gold version

Capable of fitting up to 4mm²(AWG #10) core conductors securely.

Capable of fitting up to 16mm diameter power cables.

High-insulation, durable thermoplastic housing.


SPECIFICATIONS

Type C-19 of IEC 60320 Standards

Mains Voltage:100 - 240 VAC

Max. Current: 20 Amp @ 115V or 16 Amp @ 240V

Dimensions:dia. 38mm x 75mmL

Compatible With

Reviews (0)

Documentation

FEATURES

Complied with CE and DIN IDE0620-1 safely standards.

1.0µm rhodium plating on all plug pins and wire clamps on rhodium version

3.0µm gold plating on all plug pins and wire clamps on gold version

Capable of fitting up to 4mm²(AWG #10) core conductors securely.

Capable of fitting up to 16mm diameter power cables.

High-insulation, durable thermoplastic housing.


SPECIFICATIONS

Type C-19 of IEC 60320 Standards

Mains Voltage:100 - 240 VAC

Max. Current: 20 Amp @ 115V or 16 Amp @ 240V

Dimensions:dia. 38mm x 75mmL
