MS9297 UK Single Socket

Add Your Review
MS HD Power UK Single Power Socket

The MS-9297 UK type Single Wall Socket offers a high quality (recessed or surface mount box type) 2 Gang solution to optimise the audio or A/V room power connections.

It is often overlooked – the wall socket connections to the Hi-Fi or A/V are a weak link in the room power supply chain. Whereas it is possible to clean your plugs, its virtually imposable, dangerous indeed to do the same with wall sockets. None of the standard commercial wall sockets have as strong a connection as the MS HD Power high spring rate Phosphor Bronze socket clips, ensuring a long term air tight and corrosion free connection, nor use as heavy gauge conductor material.

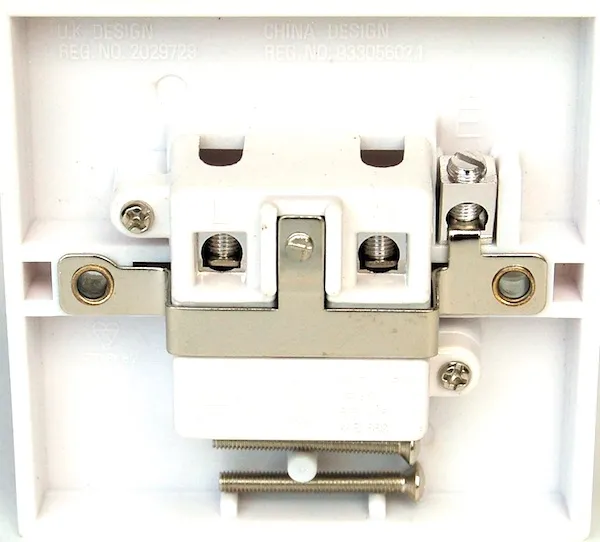

These sockets comply to the BS-1363 Safely Standards, the High Spring Rate Phosphor Bronze Socket Clips and all other conductive parts are with Silver, Gold, Rhodium Plating, including wire fixing screws, which can secure large diameter cables, up to 14mm² / AWG #6 Electrical Wire, for those who are wiring from the consumer unit direct to this wall socket with heavy gauge cabling.

White die-cast Bakelite cover panel material is used for is superior insulation and anti-vibration properties.

£45

Select Variation:
No more in stock

Specifications

FEATURES

78K cryogenic treatment enhances superb quality and performance.

Complied with BS-1363 safely standards.

High spring rate phosphor bronze socket clips to assure tight connection.

Large size cable terminals capable of fitting up to 14mm² / AWG #6 electrical wire.

Thermoset moulding for best Insulation.

VERSIONS

SILVER:  3.0µm silver plating on all clips and conductor fixing screws.

GOLD: 3.0µm gold plating on all clips and conductor fixing screws.

RHODIUM: 1.0µm rhodium plating on all clips and conductor fixing screws.

SPECIFICATIONS

Number of sockets: 1

Type of Socket: BS-1363 Standards, Unswitched

Mains Voltage: 200 - 240 VAC / 50~60Hz

Panel Dimensions: 86mm x 86mm

Mounting Holes: Two bores at 60mm C/C

Compatible With

Reviews (0)

Documentation

FEATURES

78K cryogenic treatment enhances superb quality and performance.

Complied with BS-1363 safely standards.

High spring rate phosphor bronze socket clips to assure tight connection.

Large size cable terminals capable of fitting up to 14mm² / AWG #6 electrical wire.

Thermoset moulding for best Insulation.

VERSIONS

SILVER:  3.0µm silver plating on all clips and conductor fixing screws.

GOLD: 3.0µm gold plating on all clips and conductor fixing screws.

RHODIUM: 1.0µm rhodium plating on all clips and conductor fixing screws.

SPECIFICATIONS

Number of sockets: 1

Type of Socket: BS-1363 Standards, Unswitched

Mains Voltage: 200 - 240 VAC / 50~60Hz

Panel Dimensions: 86mm x 86mm

Mounting Holes: Two bores at 60mm C/C
