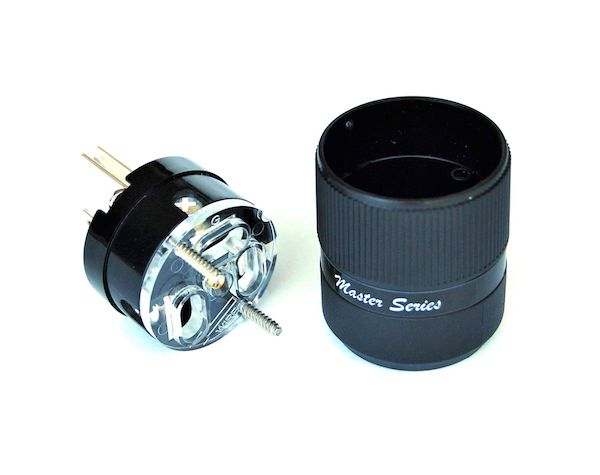

A MS HD Power plug for the USA standard wall plug.
Available in 3 different platings, all with every contact surface plated in the chosen finish.
Securing up to 16mm diameter cables and up to 4mm power and earth conductors internally.
This USA plug has been designed to be used with audio equipment power cables for the best power transmission with no compromises. All the electrical parts (polished pins and all internal parts) are made from premium quality copper, the Fuse Clips are made of high spring rate Phosphor Bronze and with Silver, Gold, Rhodium Plating
The design allows for easy cable fitting (instructions provided) and the ease of cable fitting cannot be under estimated, some other brands are difficult to wire up with thicker cables.
The heavy duty mains wire-clamps design ensure an tight connection to ensure perfect power transmission and also protect the power cable wires from damage over time – inferior plugs secure the cables by the grub screws twisting down onto the cable directly and can be prone to material ‘creep’ over time, causing damage.
FEATURES
Complies with BS-EN-60320 safely standards.- High spring rate phosphor bronze socket clips to assure tight connection.- all clips and conductor fixing screws.
Capable of fitting up to 4mm² (AWG #10) core conductors securely.
Capable of fitting up to 16mm diameter power cables.- Heavy gauge wire-clamps improve power transmission and protect electric-wire damage from fixing screws.- High-insulation, durable thermoplastic housing.
VERSIONS
Silver: 1.0µm pure 925-silver plating on all plug pins and wire-clamps.
Gold: 3.0µm 24K gold plating on all plug pins and wire-clamps.
Rhodium: 1.0µm rhodium plating on all plug pins and wire-clamps.
SPECIFICATIONS
Heavy gauge wire-clamps improve power transmission and protect electric-wire damage from fixing screws.
High-insulation, durable thermoplastic housing.
Rating: 15A / 125V
38mm x 51mmL (Housing Only)
